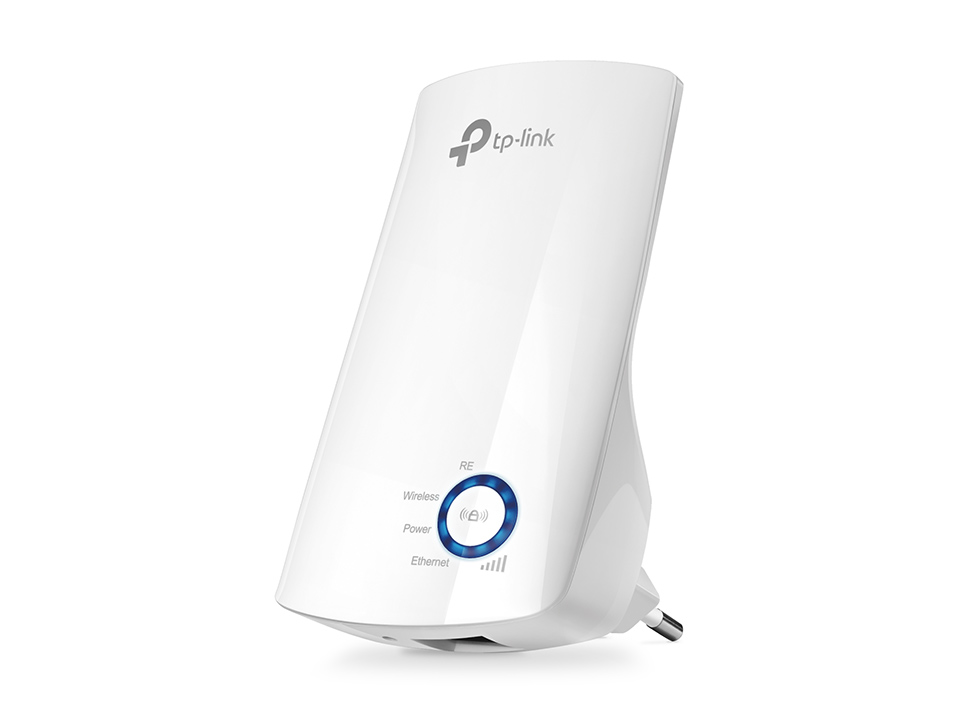

TL-WA850RE 300Mbps Wi-Fi Range Extender

Plug Type: EU
Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Max. Power Consumption: About 3W
Dimensions ( W x D x H ): 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2mm)
Antenna: 2 Internal Antennas

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4~2.4835GHz
Signal Rate:
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Working Modes: Range Extender/Access Point

Reception Sensitivity:
270M: <-68dBm
130M: <-68dBm
108M: <-68dBm
54M: <-68dBm
11M: <-68dBm
6M: <-68dBm
1M: <-68dBm

Wireless Functions:
Enable/Disable Wireless Radio
Access Control
LED Control
Power Schedule
Wi-Fi Coverage

Wireless Security:
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power: < 20 dBm (EIRP)

Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP

Package Content
300Mbps Universal Wi-Fi Range Extender TL-WA850RE
Quick Installation Guide
